Overview
Digital meters is a measuring device based on microcontroller. It measures a number of power parameters and while communicating with a remote server. As India transitions from conventional to smart grid, Newtek provides future-ready digital meters that make power measurement precise, accurate and easy to follow. Efficient digital meters make it easier for businesses to calculate power consumption on hourly and daily bases, and make adjustments accordingly to save power costs.
Models
3 models available

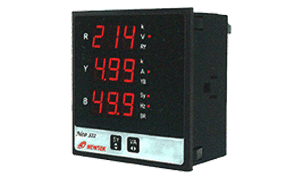

VAF Meter Neo 322
Product Features
- 96 mm × 96 mm DIN quadratic
- 3 Line : 3 Digit LED display
- Onsite Programmable : 3 phase 4 wire/3 wire /2 wire. CT / PT Primary. CT Secondary 1A or 5A. PT Secondary (1OOVLL to 500VLL)
- Compact depth (54mm)
- Screw type i/p current termination
- Basic : V, I, Hz
- System : RPM, Run-hour
- Unbclcnce in % : V, I
- Input Voltage : 10 -290V L-N (500VLL)
- Frequency : 45 to 65 Hz
- Current : 1A or 5A
- AUX Supply : 230 VAC. ± 20%
- Accuracy : Class 1.0,Optional: Class 0.5
- Operating Temperature range : 0 to +50degC
- Enclosure : Front– IP54 (Dust & water) Back – IP20 Material – Polycarbonate (UL94 VO)
- High voltage test : 2.2 kVAC 50Hz for 1 minute between all electrical Circuits
