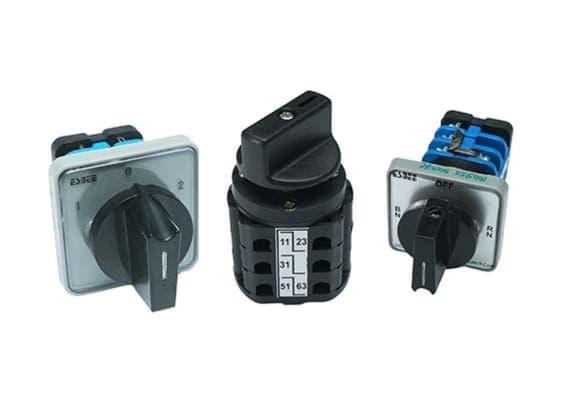

Heavy-Duty Cam Switches for Crane Electrical Circuit Switching

Cam Switches are robust, multi-position rotary electrical switching devices used in crane applications to control and route electrical circuits associated with hoisting systems, trolley travel, bridge movement, auxiliary equipment, lighting, and maintenance functions. The cam switch mechanism provides positive, multi-position switching with reliable contact actuation at each selected position, making it an ideal solution for crane environments where dependable circuit selection is required under continuous vibration, mechanical stress, and demanding operating conditions.

The rotary cam switch operates through cam-actuated contact blocks, where a rotating cam mechanism mechanically opens and closes electrical contacts in a predetermined sequence as the switch moves between positions. This positive mechanical action ensures precise switching performance and reliable contact engagement at every position. Unlike conventional switching methods, the cam mechanism firmly holds contacts in their selected state, preventing unintended switching, contact chatter, or intermittent connections caused by crane vibration and dynamic load movement.

In crane applications, cam switches are commonly used for motor control functions, direction selection (forward/reverse), speed control circuits, power isolation, maintenance mode selection, lighting control, and auxiliary equipment operation. Their multi-position design enables multiple operating modes and circuit configurations to be controlled from a single compact device, reducing panel complexity and simplifying operator control stations.

Cam switches designed for crane installations are engineered to withstand the harsh conditions found in industrial facilities, ports, steel plants, warehouses, manufacturing plants, and material handling environments. They offer excellent resistance to vibration, dust, moisture, temperature variations, and repetitive switching operations. High-quality contact blocks are rated for long service life, ensuring consistent electrical performance and reliable operation throughout the crane's operational lifespan.
